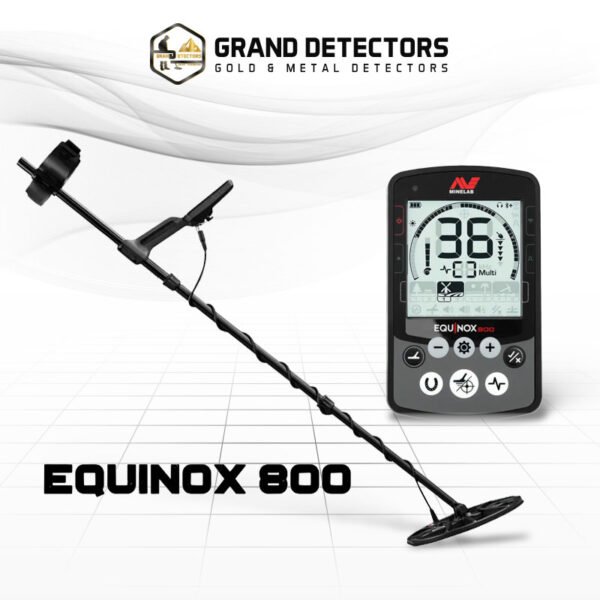

Equinox is a modern multi-purpose metal detector with new innovative technology and a lot of features making him a best companion for any prospector or treasure hunter.
The most innovative feature of Equinox, is its new Multi-IQ technology, which allows the use of more than four different search frequencies simultaneously. So, it is possible to search for underground metal targets using different frequencies at the same time, which gives the possibility of covering various targets of different sizes and types of metal.
This saves time and effort on the prospector and thus explores more targetsin less time and thus yields greater returns.
Equinox From Minelab is easy to use, thanks to ease of adjusting the various settings on the large screen which enable easy to read indicators for the user, as well as through the four search modes, which can be customized to suit all the terrain and natural conditions.
For gold prospecting, Equinox offer a unique gold mode to get best results in finding golden objects underground. Equinox redefines the multi-purpose metal detectors and uses for all prospectors and gold prospectors thanks to its ease of use, technology and high performance in all terrain.
One of the most exciting new features of Equinox is the Multi-IQ technology.
This technology, which is the first in a metal detection device, enables the simultaneous use of multiple search frequencies (including the following frequencies in the device 5 – 10 – 15 – 20 – 40 kHz).
This means that the device uses all these frequencies at once to simultaneously search for underground metal targets and this gives a wider and larger coverage of the various buried targets.
Equally adaptable for all target types and ground conditions:
|Technical Specification Name||Technical Specification Value|
|Search frequency||5kHz, 10kHz, 15kHz, 20kHz, 40kHz and multi|
|technology||Multi-IQ and 5FX8|
|Type metal detector||Digital|
|Number of search modes||2x park, 2 x field, 2 x beach and 2 x gold mining modes|
|Search coil||28cm / 11 “double-D search coil|
|Weight metal detector||1.34 kg|
|Adjustable rod length||approx. 106-129cm, adjustable|
|Adjustability and shape of the linkage||Easily adjustable, with a round rod.|
|Control unit (electronics) watertight||Completely waterproof, up to 3 m under water|
|Headphone jack||Yes, 3mm jack connector, and it is also a waterproof connector for Minelab’s waterproof headphones.|
|Built-in wireless module||Yes, for the supplied Bluetooth headphones from Minelab.|
|target group||Beginners, advanced, gold prospecting and searching in the water|
|Type and number of batteries||Li-Ion battery, located in the handle|
|Battery life||10 to 12 hours|
|Readable battery level indicator||Yes, in 3 stages|
|Readable depth range||Yes, in 5 stages|
|Soil mineralization can be read on the display||No|
|Ground balance||Yes, manual, automatic and tracking|
|Sensitivity (sensitivity adjustment)||Yes, 1 to 25|
|Discrimination of unwanted objects||Yes|
|Object identification through audio tones (metal type recognition)||Yes, 1, 2, 5, or 50 tones|
|Object identification readable on the display (metal type recognition)||No|
|Conductance display (metal type detection)||Yes, from -9 to 40 (-9 to 0 is iron, and 1 to 40 is non-ferrous.)|
|Recovery speed (reaction time)||Very fast, adjustable in 8 levels|
|Volume control||Yes, 0 to 25|
|Display lighting||Yes, to 3 different brightnesses|
|Backlight push button||No|
|Search coil lighting||No|
|Vibration as a metal detector signal||No|
|Online software update||Yes|
|Frequency changer||Automatic interference suppression|
|Threshold (background tone)||Yes, 0 to 25|
|Operating software in different languages||Everything with symbols (universal)|
|Depth range of small objects (1 Chf )||40 cm|
|Maximum depth range large objects||1.5 m|
|Suitable for use on the coast||Yes|
|Suitable for wading (completely underwater)||Yes|
|Suitable for diving||Yes, up to 3 meters|
|Suitable for mineralized soils||Yes|
|Suitable for wet salty soils (by the sea)||Yes|
|Suitable for finding gold nuggets (Africa, Australia)||Yes|
- Smart Coil D-Double 06 E
- Smart Coil D-Double 11 E
- D-Double 15 EQX Smart Coil
- USB charging cable with magnetic connector
- Bi-directional USB car charger
- Universal four-way AC charger
- Wireless audio unit 08 W
- ML80 M Wireless Headphones
- Waterproof EQUINOX headphones
- Headphones (wired) 5.3 mm / 1/8 inch
- Headphone adapter cable
- Lithium batteries
- User’s Manual
- Warranty certificate for 3 years
