Description

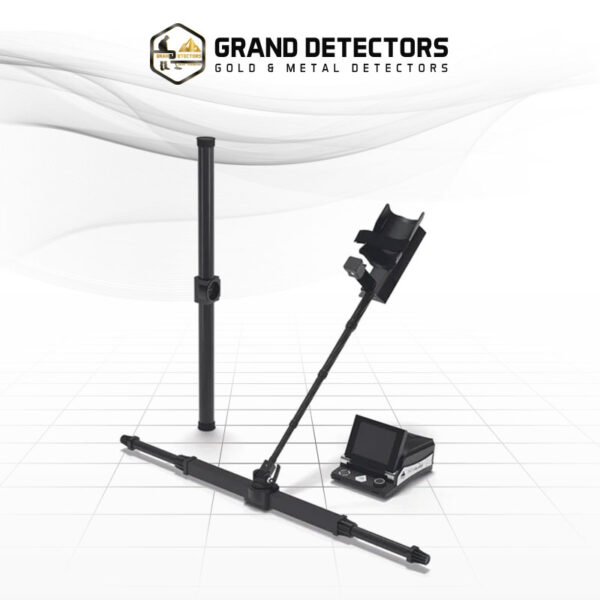

OKM EXP 6000 PROFESSIONAL PLUS

3D GROUND SCANNER AND METAL DETECTOR FOR THE HIGHEST DEMANDS

The EXP 6000 ground scanner and 3D metal detector are one of OKM’s top-of-the-line detecting tools for treasure hunters, metal detectorists, archaeologists, prospectors, gold seekers, and ground surveyors. This detector is completely wireless and can be controlled via touchscreen, video eyeglasses, or notebook. It is the world’s first 3D ground scanner that utilizes the innovative OKM Telescopic Probe which can be extended to 124 cm (4 ft).

COLOR DISPLAY AND TOUCHSCREEN

The Control Unit with touchscreen and multilingual graphical user interface (GUI) is very easy to use. Different layouts and automatic brightness control allow the user to efficiently operate the detector even in varying ambient light conditions.

HEIGHT-ADJUSTABLE TELESCOPIC ROD

The Telescopic Rod can be adjusted to the user’s body size in just a few simple steps. Its armrest is equipped with additional pads for more ergonomics during the treasure hunt. At the lower end, the probes are quickly and easily mounted via a magnetic connector.

EXCHANGEABLE PROBES FOR VARIOUS PURPOSES

Like many high-quality consumer and technical applications, the eXp 6000 probes are made of Carbon. This extremely rigid and light material allows treasure hunters to use the lightweight detector even more easily. Additionally, the probes establish a wireless data connection to the treasure detector to send the scan data directly to the Control Unit.

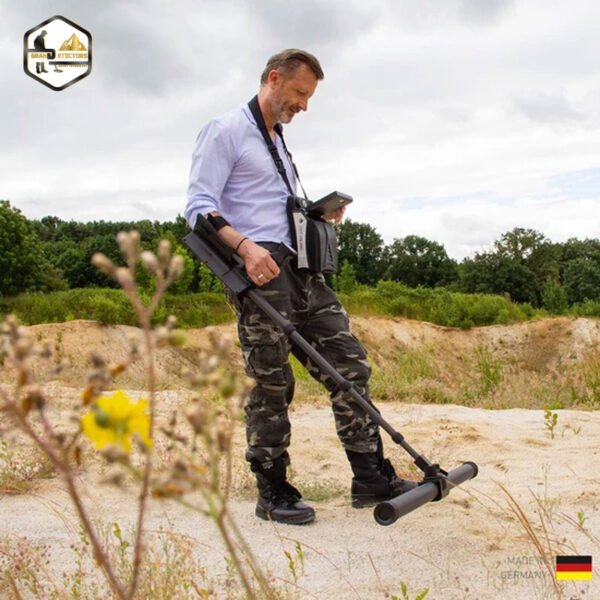

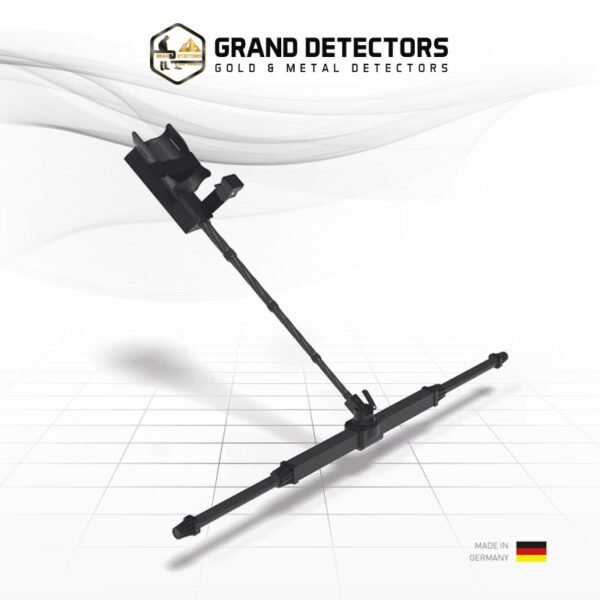

Telescopic Probe:

This innovative probe can be extended to 124 cm (4 ft) and is perfectly designed to scan both large areas and narrow areas. As a result, treasure hunters need only one probe and avoid the necessity of carrying additional accessories.

Super Sensor:

This specialized ground measuring probe is one of the best ground scanner accessories on the market. By using this antenna, discrimination and pinpointing of buried objects is possible with ease.

Tunnel Sensor:

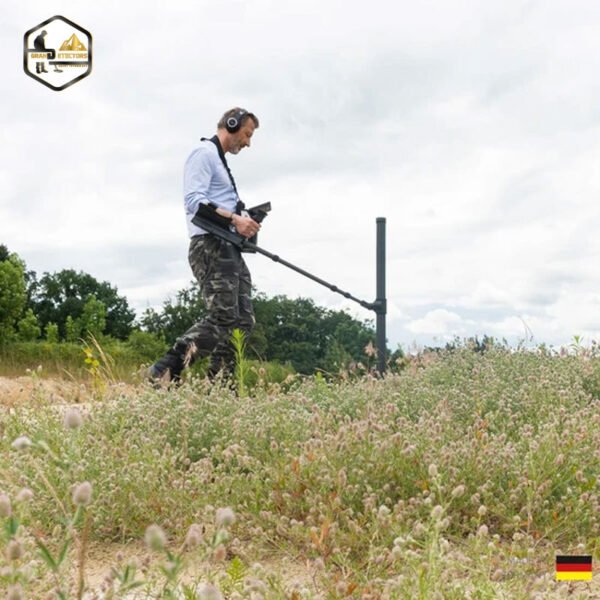

This measuring probe can be mounted to the 3D metal detector to detect hidden tunnels, chambers, cellars, shelters, caves, and many other underground cavities and structures.

Live Stream Sensor:

This ground scanning probe will stream measuring data immediately onto the display of the eXp 6000 to see underground objects “live”. Thus, the 3D ground scanner user can quickly survey a large area to find potential underground targets.

eXp 6000 Exclusive: Orientation Sensor

The orientation sensor assists treasure hunters in holding the probe correctly during the measurement. An icon on the screen and a varying acoustic signal warn as soon as the probe is held at the wrong angle. Only a correct orientation of the probe guarantees reliable measurements.

For more info on OKM 6000 Professional – watch OKM 6000 Professional videos here!

EXP 6000 OPERATING MODES

As a top-notch detector, the professional 3D ground scanner eXp 6000 offers various operating modes in one device:

3D Ground Scan: Visualization of underground artifacts and cavities in 3D representations.

Mineral Scan: Detection of natural mineralization, visualized in a color-coded graph.

Magnetometer: Localization of ferromagnetic objects.

PinPointer: Identification and localization of detected anomalies.

Live Scan: Visualization of artifacts and cavities in real-time.

Tunnel Scan: Detection of tunnels and cavities, visualized in a color-coded graph.

SAVE AND ANALYZE SCAN DATA

The scan data collected in the operating modes Mineral Scan, Tunnel Scan and 3D Ground Scan can directly be saved in the internal memory of the eXp 6000. After finishing the measurement, the user may open the stored scan files for direct analysis on the eXp 6000 Control Unit or transfer the .v3d files to a computer for detailed analyses.

3D ANALYSIS VIA DETECTION SOFTWARE

The treasure hunter gets a first glimpse of his scan data directly on the screen of the Control Unit during the measuring process. After finishing and saving the measurement, the user receives a graphical representation of the scan field with color-coded targets. This scanned image can be viewed in 2D and 3D as well as rotated and scaled directly on the Control Unit touchscreen.

Thanks to the included 3D software Visualizer 3D Studio Standard Edition, the collected measurement data can afterward be analyzed in detail on a computer. In this way, the depth, position, and size of target objects can be determined and the remarkable objects can be supplemented with notes.

OPTIONAL ACCESSORIES: ANDROID TABLET, WINDOWS NOTEBOOK, AND POWER PACK

Both the Android tablet and the Windows notebook can be used in addition to the Control Unit and allow further users to view or observe the 3D ground surveys while scanning. Moreover, the Windows notebook with installed Visualizer 3D Studio detection software allows for detailed scan image analyses.

The Power Pack (version D/C) provides additional energy for the detector. With the additional Power Pack, the treasure hunter is able to charge the Control Unit and the Telescopic Rod outdoors and even extend the operating time of the detector while scanning the ground.

TARGET RIGHT IN FRONT OF YOUR EYES WITH THE SMART GLASSES

Besides the touchscreen, the eXp 6000 ground scanner user can also control the metal detector with the Video Eye Glasses. This allows the treasure hunter to focus even better on the environment and to notice any obstacles in the scan field during the measurement. In the projection directly in front of his eye, he simultaneously receives the already recorded scan data.

SPECIFICATIONS:

CONTROL UNIT

Dimensions (H x W x D): 120 x 210 x 280 mm

Weight: approx. 2.34 kg

Voltage: 11.8 – 19 VDC, 50 W maximal

Safety Class: IP40

Operating Time (full charged, 25 °C): approx. 4 hours

Operating Temperature: -10 °C – 50 °C

Display: 6.5” Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm

Processing Unit: QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU

Working Memory (RAM): 4 GB Kingston HyperX

Data Memory: 8 GB SDCard, Class 10

Feedback: acoustic, visual

Storage temperature: -20 °C – 60 °C

Air humidity: 5 % – 75 %

Waterproof: No

Data Transmission Technology: WiFi 802.11n a/b/g, MIMO 2×2

Data Transmission Rate: 11 Mbps – 54 Mbps

Operation Distance (line of sight to telescopic rod): max. 4 m

TELESCOPIC ROD

Dimensions (H x W x L): 210 x 135 x 680 – 1340 mm

Weight: about 1,76 kg

Voltage: 11.8 – 19 VDC, 22 W maximal

Safety Class: IP40

Operating Time (full charged, 25 °C): approx. 5 hours

Operating Temperature: -10 °C – 50 °C

Processing Unit: ARM Cortex M0+ @ 48 MHz

Working Memory (RAM): 32 KB

Data Memory: 256 KB

Storage temperature: -20 °C – 60 °C

Air humidity: 5 % – 75 %

Waterproof: No

Data Transmission Technology: WiFi 802.11n a/b/g

Data Transmission Rate: 11 Mbps – 54 Mbps

Operation Distance: (line of sight to control unit): max. 4 m

SUPER SENSOR

Length: 950 mm

Weight: approx. 1.0 kg

Receiver: Dual / Hi-Gain – Vertical – Geophysical Phase Reader – EMSR

Sensor technology: SCMI-15-D

TELESCOPIC PROBE

Length: 500 mm

Weight: approx. 0.76 kg

Receiver: Dual Geophysical Phase Reader – EMSR

Sensor technology: SCMI-15-D

TUNNEL SENSOR

Length: 820 – 1240 mm

Weight: approx. 1.04 kg

Receiver: Dual Geophysical Phase Reader – EMSR

Sensor technology: SCMI-15-D

LIVE STREAM SENSOR

Length: 600 mm

Weight: approx 0.92 kg

Receiver: Hexa Geophysical Phase Reader – EMSR

Sensor technology: SCMI-15-D

GPS RECEIVER

Dimensions (L x W x H): 50 x 55 x 27 mm

Weight: about 60 g

Input voltage: 5 V DC

Input current (maximum): 450 mA

Input current (typical): 50 mA

Refresh rate: 1 s

Cold start: < 40 s

Warm start: < 30 s

Horizontal Position Accuracy (most cases, outdoor): 2,7 m

Horizontal Position Accuracy (free view, clear sky): 0,9 m
