Description

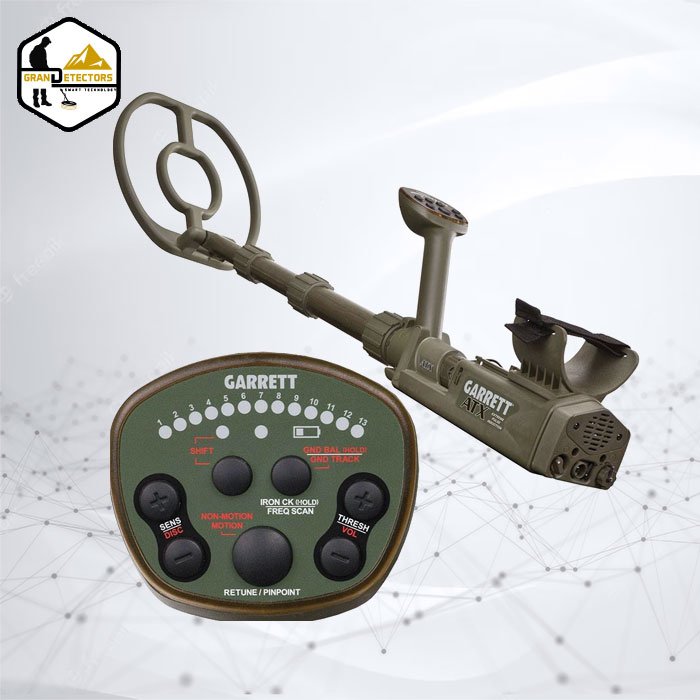

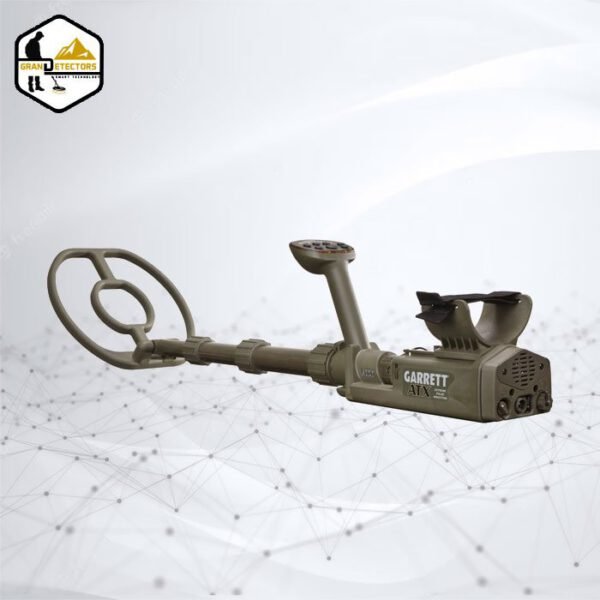

GARRETT ATX is the most powerful natural gold detector with high sensitivity
for detection of the tiniest gold nuggets underground.
GARRETT ATX uses a unique Pulse Induction technology that gives the most accurate and reliable results with extreme gold sensitivity to locate tiny gold nuggets in all hard terrain.
GARRETT ATX however, is a versatile device that can be used for many purposes and metal detection activities such as gold prospecting, relic hunting, coins shooting, etc.
GARRETT ATX is a robust machine that gives the prospector the best performance in most hard terrains, such as rocky lands and sandy soils thanks to its robust design and advanced features Garrett ATX Gold Detector Features
– Maximum Detection
With ATX there is no need to switch search modes to enhance the detection of a specific target as the device can detect all targets at the same time.
– Advanced Ground Balance
Garrett ATX is engineered with special FAST TRACK ground tracking technology for automatic ground balance in different terrains such as mineralized ground and saltwater.
By using this technology the device continuously measures ground mineralization and then automatically adjusts itself for optimum performance based on ground conditions.
– Motion and Non-Motion Detection Modes
Garrett ATX has two detection modes that the user can use in order to provide the best performance to the specific task, those modes are based on ground conditions and personal preference:
1 – Non-Motion All Metal Mode :
it offers the deepest detection depth and more sensitivity for the detection of the smallest gold nuggets, so in this mode, the device works as an electronic pinpointing device used to locate accurately detected target’s position.
2 –Motion Mode:
It is usually preferred because it is more stable and quiet but requires the search coil to be in motion to detect targets
– Iron Check
This feature is useful for letting the user identify ferrous metals such as iron by making a sound when it finds iron using DD search coil.
– Exclusive Design Waterproof DD Search coil
Which enhances the detection of small items without having to slow down the scanning speed of the coil a result.
– Work in All Terrain and Weather Conditions
Garrett ATX work effectively in all ground terrains types such as mineralized ground, salty soils, sandy soils and so on, because of its automatic ground balance and other features.
Garrett ATX Designed for use in wet, humid and also in dusty environments, and also can be immersed in water to 3m depth and thus suitable to find gold in rivers and shorelines and lakes.
– Tough Device with Military Design
ATX was built using military design with high durability in mind , so it work in all tough environments and conditions.
It is also fully collapsible as it can be operated with its stem fully extended, fully collapsed, or anywhere in between.
– Volume Control
The operator of the device can manually adjust audio threshold levels for better hearing of sounds coming from targets; also he can limit the response of large signals in order to better hear deep/faint signals.
– LED Indicators
The control panel of the device shows signal strength and current settings.
– Waterproof Speaker
Built-in option to search without headphones.
TRUE ALL METAL MODE
Detects all types of metal and provides the greatest possible detection depth and sensitivity.
ALL TERRAIN
Designed for use in wet, humid and dusty environments. Can be submerged in water to 10-foot (3m) depth.
IRON CHECK
Allows user to audibly identify iron targets when using a DD search coil.
ADJUSTABLE THRESHOLD
User can manually adjust the audio threshold (the constant background “hum”) to better hear targets.
FAST TRACK GROUND BALANCE
Automatic feature that allows the user to quickly ground balance the detector in mineralized soil conditions.
GROUND TRACK (AUTOMATIC)
Detector continually measures ground mineralization and automatically adjusts itself for optimum performance. (Four track speeds on ATX.)
ELECTRONIC PINPOINTING
This non-motion All-Metal Mode function is used to precisely locate a detected target’s position.
Technical Specification Name | Technical Specification Value |
Detection Performance | Superior sensitivity on all targets, especially on small, low conductivity items (sub 0.1 gram nuggets, fine jewelry, etc.). |
Ground Balance Capabilities | YES. Fast Track |
Balances to Saltwater | YES. Inherently immuneto most saltwater; use Ground Balance if needed. |
FastTrack Ground Balance | YES |
Continuous GroundTrack | 4 settings: Off, Slow, Med, Fast |
User Controls/Functions | LED indicators show signal strength, current settings. Easy push-button control to alter Audio Threshold (25 settings), Volume, Sensitivity (13 settings), Pinpoint, etc. |
EMI Control | Excellent immunity in more severe EMI environments. Has push-button automatic frequency scan and selection to provide quietest operation. |
Discrimination/Delay | 25 settings, via push-button control |
Iron Audio | YES (Requires DD coil) |
Search Modes | Motion and Non-Motion Modes, plus Pinpoint |
Submersion Depth | 10 feet (3m) |
Standard Searchcoil | 10″ x 12″ DD |
Length (Adjustable) | 20″ to 68″ (.51m – 1.72m) |
Power | 8 AA alkaline, plus 8 AA rechargeables and charger |
Warranty | 2 Year, Limited Parts/Labor |
Headphones Included | Standard land-use |
Total Weight | 6.9 lbs (3.13 kgs) |

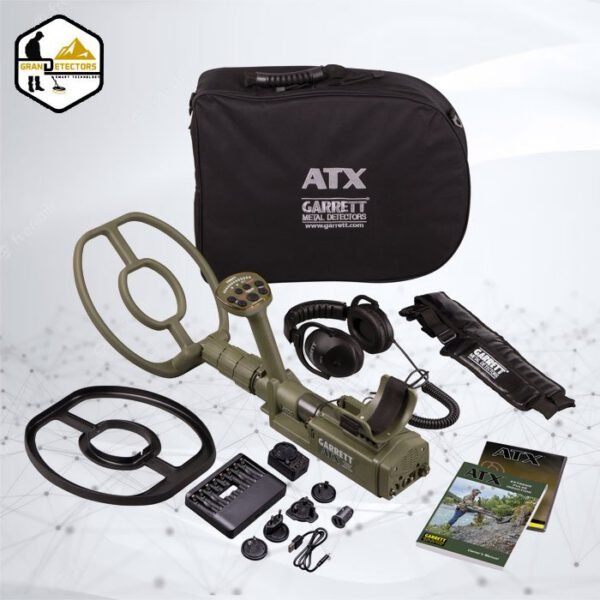

- Garrett MS-2 headphones
- Search disc(12 * 10 inches)
- Device carrying bag
- rechargeable batteries
- Batteries charger
- Small finds bag (travel bag)
- A DVD containing videos
- User’s Manual
