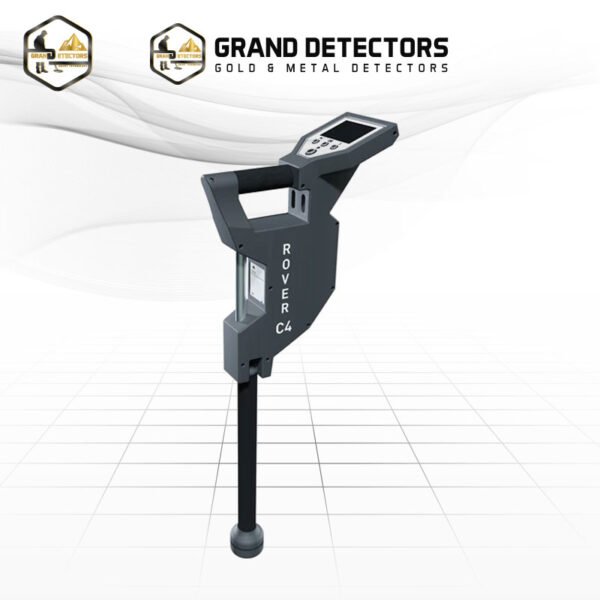

OKM ROVER C4

OKM Rover C4 is a powerful metal detector and 3D ground scanner designed to search for buried treasures and underground gold minerals. Easy handling, multilingual operation, accurate measurements, and visual 3D graphics are just a few of the unique features of this detector.

The Rover C4 generates graphical 3D images of underground treasures, localized anomalies, and gold minerals. This allows you to determine the size and depth of potential finds before excavation.

OKM Rover C4 is a multi-purpose treasure and cavity detector that is very easy to use. Using the Ground Scan and Mineral Scan modes, it detects lost treasures (coins, rings, jewelry, etc.) as well as cavity structures (tunnels, caves, chambers, graves, etc.). The measurement data are displayed graphically with the Visualizer 3D Software.

For more info on OKM Rover C4 – watch OKM Rover C4 videos here!

SPECIAL FEATURES OF THE OKM ROVER C4

Supported operating modes: Ground Scan, PinPointer, Mineral Scan, Magnetometer

The graphical user interface in many different languages

Operational touch screen with alternative hardware buttons

Improved Multilevel LED lighting to operate the detector in dark environments

Integrated Battery

Simplified wireless data transfer

4 separated memory areas to store recorded measuring data

Standard Probe and Super Sensor with innovative LED Orbit

Including Software Visualizer 3D Studio Standard Edition

SIMPLE OPERATION VIA TOUCHSCREEN

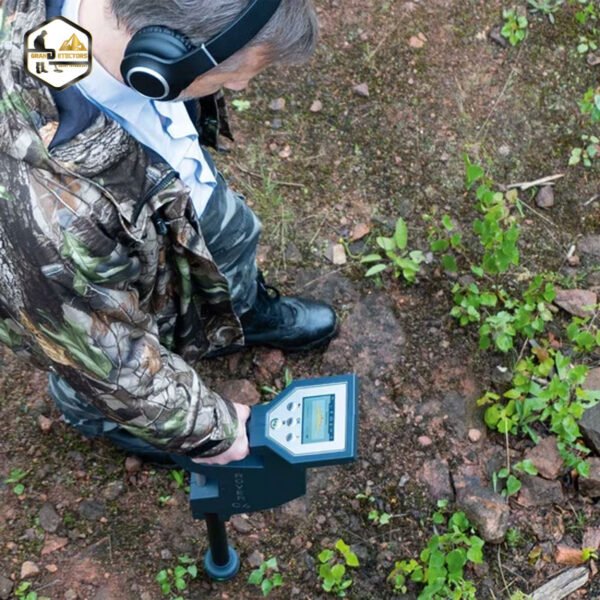

The Rover C4 is controlled via the color touchscreen with a multilingual user interface. This allows for easy operation and configuration of the metal detector. The detector can also be operated using alternative buttons and the brightness of the screen can be individually adjusted.

IMMEDIATE FEEDBACK  VIA LED ORBIT

The detector is also equipped with an innovative LED orbit, that indicates underground targets visually. While scanning the ground this LED sphere emits colored light to visualize detected metals and cavities immediately.

For more info on OKM Rover C4 – watch OKM Rover C4 videos here!

OPERATING MODES OF ROVER C4

Ground Scan lets you create 3D images of the underground and find buried coins, rings, jewelry, and similar treasure objects and artifacts.

Mineral Scan is used to locate natural gold deposits.

GROUND SCANNING WITH OKM ROVER C4 METAL DETECTOR

One of the most versatile operating modes in our 3D metal detectors is Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.

Detectable items that can be found with our 3d ground scanner OKM Rover C4 are:

Lost treasures and hidden precious metals

treasure chests, gold coins, jewelry, silverware, statues, general valuables, buttons, medals, etc.

Underground voids and cavities

tunnels, graves, chambers, cellars, sepulchers, dugouts, shelters, bunkers, etc.

Natural gold minerals

gold ore, gold deposits, gold veins, etc.

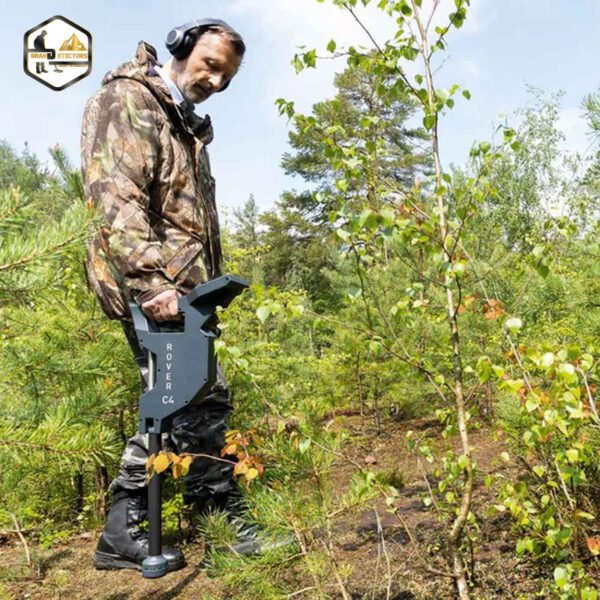

By walking over the field in a certain manner (Parallel or Zig-Zag) the treasure hunter scans the area of interest. With all recorded data the Visualizer 3D Software creates a 3D image that represents all detected underground objects. Thus, you know where and how deep the located treasures are in the ground.

For more info on OKM Rover C4 – watch OKM Rover C4 videos here!

3D DATA ANALYSIS WITH VISUALIZER 3D SOFTWARE

All data that has been recorded with the OKM Rover C4 metal detector during a ground scan or mineral scan can be transferred to the Visualizer 3D Software to process a detailed three-dimensional analysis.

DURING ANALYSIS

Identify potential objects and hidden treasures

You will see the targets represented by different colors. The color information will tell you if it is a ferrous metal (iron, steel, …), precious metal (gold, silver, bronze, copper, …), or a void structure (cave, tunnel, grave, chamber, …).

Determine position and depth

The software shows the position of the detected anomalies and – according to the chosen soil – how deep the target is buried in the ground.

Calculate object dimensions

Next to the depth information Visualizer 3D can also calculate the dimensions of hidden targets and buried items.

BURIED OBJECTS ARE INDICATED BY DIFFERENT COLORS IN A GRAPHICAL 3D REPRESENTATION.

COMPUTER MINIMUM REQUIREMENTS

Interface (Data Transmission): USB 2.0

Free Disk Space: 250 MB

Working Memory (RAM): 2GB

Display: 1920 x 1080

Processor: 1.2 GHz

Graphics Card: 1GB RAM, Open GL 3.3

Operating System: Windows 10

DATA TRANSMISSION

Technology: Bluetooth 5.1

Frequency: 2.402 – 2.480 GHz

Maximum Transfer Rate: 1 Mbps

Maximum Transmitting Power: +8 dBm

Maximum Range: Approx. 10 m

OKM ROVER C4 CONTROL UNIT

Dimensions (H x W x D): 390 x 300 x 140 mm

Weight: About 1.5 kg

Input Voltage (Max.): 19 V DC, 3.16 A, 60 W

Processor / Main CPU: Cortex M3, 32 MHz

Processor / Slave CPU: Cortex M0, 24 MHz

Display: 3.5” Resistive touch, 480 x 320 Pixel

Display CPU: Cortex M3, 32 MHz, 128 KB RAM

Data Memory: 4 GB

Sample Rate: 1024 values / second

Measurement Resolution: 16 bit

Operating Temperature: –10°C – 60°C

Storage temperature: –20°C – 70°C

Audio: Internal speaker / Bluetooth

Waterproof: No

Air Humidity: 5% – 75%

OKM ROVER C4 STANDARD PROBE

Weight: 0.4 kg

Length: 445 mm

Diameter Tube / LED Orbit: 35 mm / 65 mm

Technology: SCMI-15-D

OKM ROVER C4 SUPER SENSOR

Weight: 0.9 kg

Length: 960 mm

Diameter Tube / LED Orbit: 50 mm / 65 mm

Technology: SCMI-15-D
