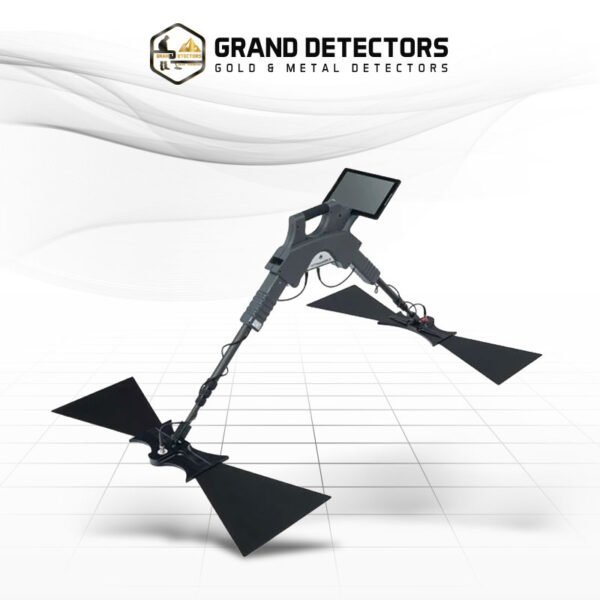

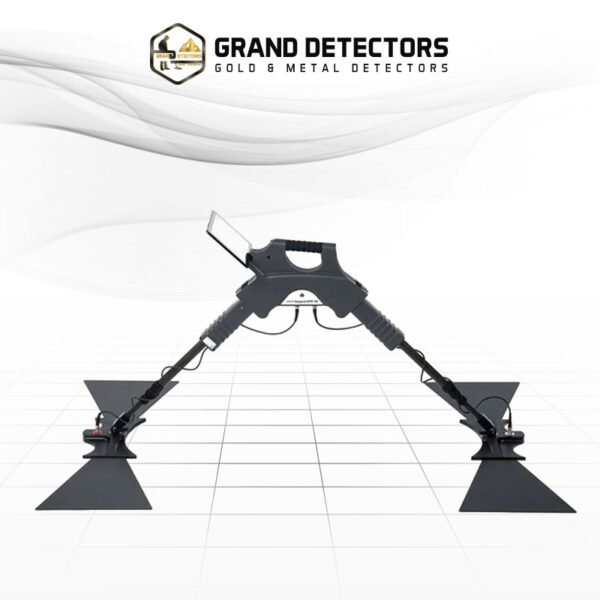

GEPARD GPR 3D

GEPARD GPR 3D from OKM – Germany is a new type of 3D ground scanners with unique technology and powerful features and performance for all detection applications

Brand:

OKM

Made:

Grrman

Depth:

40 M

Distance:

Targets:

Caves & Voids, Coins, Gold, Treasures

You can pay by credit card or bank transfer. For more information and payment methods available in your country. Contact us

Product Price:

$22,300

SKU: GG3D Category:

Free Shipping

Warranty

Support

The Gepard GPR is a very flexible and powerful Ground Penetrating Radar for the detection of underground objects like pipelines, cavities, cables, conduits

Contact us for more information

Description

OKM GEPARD GPR 3D

The Gepard GPR is a very flexible and powerful Ground Penetrating Radar for the detection of underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers, and foundations.

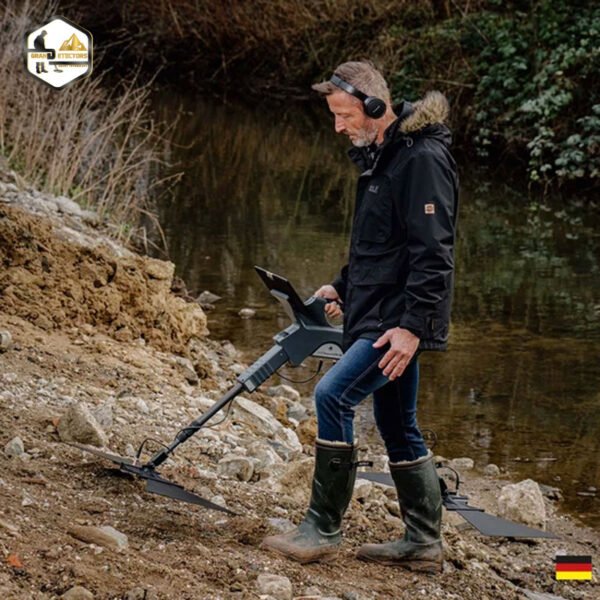

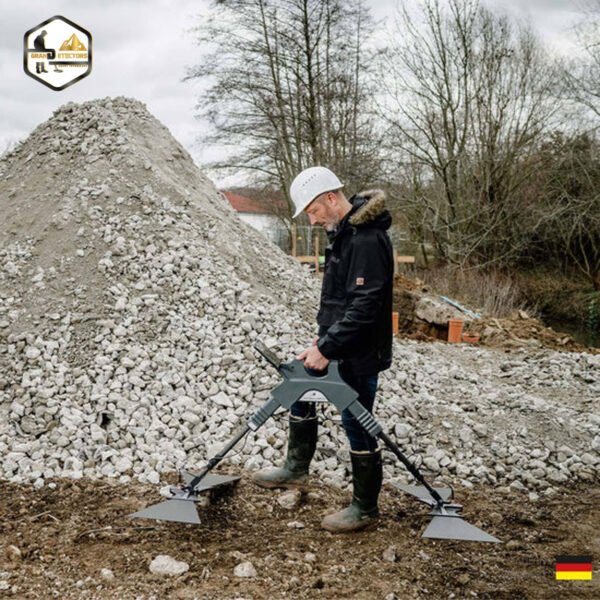

The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters (131 ft). The agile and compact unit can easily be operated by a single user via Android Tablet PC.

The RADAR (Radio Detection and Ranging) of the Gepard GPR 3D sends a signal into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies.

WATCH THE OKM GEPARD GPR 3D VIDEO HERE!

DETECTABLE OBJECTS AND STRUCTURES

Underground walls, basements, and concrete reinforcements

Hidden cavities, graves, and sepulchers

Water level and underground rivers and aquifers

Buried pipelines, conduits, and cable harnesses

Backfilled wells, galleries, trenches, and dugouts

Septic tanks, distribution boxes, and drainage pipes

Secret tunnels, bunkers, and shelters

Buried treasure chests, statues, and caches

OPTIMIZATION OF GROUND SURVEY

The Gepard ground penetrating radar is using multiple transmission frequency ranges starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.

MEASUREMENT DATA ANALYSIS WITH ANDROID SOFTWARE

The measured data of the ground-penetrating radar is immediately transferred to the Android Tablet PC. The Android software receives the data via WiFi and displays it directly on the screen.

The software offers the option of integrating a GPS signal or Google Maps, filtering automatically, and entering notes for later recollection of specific scan details. Additionally, the automatic filtering option improves the results of your scan and assists in finding hidden objects and structures more easily. Due to the integrated GPS, all scan positions can be stored along with the scan data.

Systems

Detection TechnologyGEPARD GPR 3D is a ground penetrating radarthat use an omnidirectional unshielded transmission systemto reach maximum depths up to 40 meters (131 ft).

The RADAR (Radio Detection and Ranging) of the Gerard GPR 3D sends a signal

into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies.

This technology uses a multiple transmission frequency range starting at 60 MHz

up to 300 MHz which is realized by adjustable telescopic antennas.

Also The device supports many automatic adjustments to optimize ground scans

on specific soil types such as rocky or sandy soils, which makes the handling of the Gepard ground radar very easy.

So the user just set required depth resolution and start the scan process easily.

Technical Specifications

Technical Specification Name Technical Specification Value
CONTROL UNIT
Dimensions (H x W x D)  450 x 260 x 130 mm
Weight  approx. 1.6 kg
Input voltage (max.)  8.4 V DC / 1.0 A
Operating temperature  –20°C – 55°C
Storage temperature  –25°C – 60°C
Waterproof  No
Operating time  approx. 4 hours
Air humidity  5% – 70%
Feedback  acoustic, visual
Protection Type  IP 20
Data Transmission Technology  WiFi, 2.4 GHz
Transmission Frequency Range  60 – 300 MHz
Timing/Sampling Adjustments  4 Levels
Complete Cycle Measurements  9 per second
TELESCOPIC SHAFT
Dimensions (H x W x D)  70 x 60 x 590–1630 mm
Weight  0.80 kg
Operating temperature  –20°C – 55°C
Storage temperature  –25°C – 60°C
Waterproof  No
Air humidity  5% – 70%
Protection Type  IP 20
Internal Battery  7.26 V / 2600 mAh
TRIANGULAR ANTENNA (UNSHIELDED)
Dimensions (H x W x D)  1010 x 330 x 50 mm
Weight  1.50 kg
Operating temperature  –20°C – 55°C
Storage temperature  –25°C – 60°C
Waterproof  No
Air humidity  5% – 70%
Protection Type  IP 20

Parts and contents

  • Control unit
  • GPR receiving unit with 2 triangular antennas
  • GPR transmitting unit with 2 triangular antennas
  • Telescopic shaft
  • Android Tablet PC
  • Waterproof and shock resistant Pelican case
  • Bluetooth headphones
  • Charging adapter and power supply
  • Travel adapter
  • User’s manual

Video

GPR Scan Analysis in Visualizer 3D Studio


The new render views in OKM's 3D software Visualizer 3D Studio allow visualizing detected structures for more detailed analyses. Gepard GPR Scan in Visualizer 3D Studio Radargram 2D of a Gepard GPR scan in Visualizer 3D Studio As soon as you open a GPR measurement, the Main Toolbar will include a further button. Here you can switch between the 2D and 3D render view. Gepard GPR Scan in Visualizer 3D Studio Volumetric 3D view of a Gepard GPR scan in Visualizer 3D Studio Improve the scan image e.g. by selecting one of the newly added OKM GPR Soil Types (Right Sidebar) and configuring the Visualization (Right Sidebar), e.g. select Smoothing. Gepard GPR Scan in Visualizer 3D Studio Volumetric 3D view of a Gepard GPR scan with optimized Threshold In the Visualization menu (Right Sidebar), you can change the Threshold to regulate the number of hidden/visible scan values and corresponding colors for the Volumetric render view. This will help you focus on the most significant targets in your scan image.


Audio Output piezo buzzer Ø:12mm - H:9.8mm sound pressure level 85db at 12v/10cm frequency 4.5±0.5 KHz
Length Device (main unit): 145.5 mm
Data processing speed 12 MHz
Operating Temperature Range 0 C° to 70 C°
Operating Humidity Range up to 95 % non-condensing
Storage Temperature Range - 20C° to 70C°
Storage Humidity Range up to 98 % Relative Humidity
Operating Time (7.56 Wh Battery) 10 Hours
Waterproof Rating - Detector not waterproof (weather proof only)
Bluetooth HC-06 module - 2.4 GHz radio
Li-ion Battery Technical Specifications
Type Li-ion Rechargeable Battery - internal battery
Output Voltage Li-ion 3.6 VDC
Capacity Li-ion 7.56 Wh
Run Time 10 Hours
Battery Operating Temperature 0 C° to 60 C°
Battery Storage Temperature - 2C° to 70C°
Electric Li-ion Battery Charger Technical Specifications !!!
Operating Temperature 0 C° to 50 C°
Storage Temperature - 30C° to 80C°
Input Voltage 90 → 250 VAC 50→60 Hz
USB Output Current 5 VDC / 2000 mA
Car Li-ion Battery Charger Technical Specifications !!!
Input Voltage 11 → 15 VDC
USB Output Current 5 VDC / 2100 mA
Other Technical Specifications
weight total
Device weight
Battery weight
Bag weight (empty)
Bag dimensions
